Removes dust from pulverizing, grinding, crushing, powder injection, sealing, severing, cutting, stone, metal work, cutting work, substrate work and welding.
Technical Specifications
scroll left and right >
Standard / Model
ZEO-KC100
ZEO-KC200
ZEO-KC300
ZEO-KC500
ZEO-KC700
ZEO-KC1000
ZEO-KC1500
Blower
Power
220 V / 380 V, 3 / 60 Hz, 440 V (option), 50 Hz (option)
Motor(kM)
0.75
1.5
2.2
3.7
5.5
7.5
5.5 x 2 SET
Air Flow (m3/min)
12
25
40
60
80
100
150
Pressure (mmAq)
230
>Bag Filter
Size (LxH)
150 x 500 mm(L)
150 x 1000 mm(L)
Quantity (Pocket)
4
6
9
12
18
24
24
Filtration area (m²)
7.5
11.3
16.9
22.5
33.8
45.0
72.0
Filtration speed (m/min)
1.6
2.2
2.9
2.7
2.4
2.2
2.1
Material
Polyester non-woven fabric / Other materials vary depending on the situation
Dusting method
Air Pulse method
Solenoid valve
2
3
3
4
6
8
8
Air consumption
20
20
20
35
40
60
60
Dimensions (mm)
A (Front)
550
620
770
770
1,300
1,600
1,700
B (Side)
550
620
770
800
800
800
800
C (Height)
1,480
1,610
1,610
1,710
1,810
1,810
2,130
D (Inlet)
125
150
200
250
300
350
400
E (Inlet diameter)
135
135
150
175
200
225
250
F (Inlet height)
340
360
380
380
420
500
550
G (Outlet)
150
200
250
300
350
400
450
H (wheel)
130
130
130
130
130
130
130
Dust Bow(L)
15
20
30
41
80
85
90
Unit Weight(kg)
150
210
310
380
480
570
710

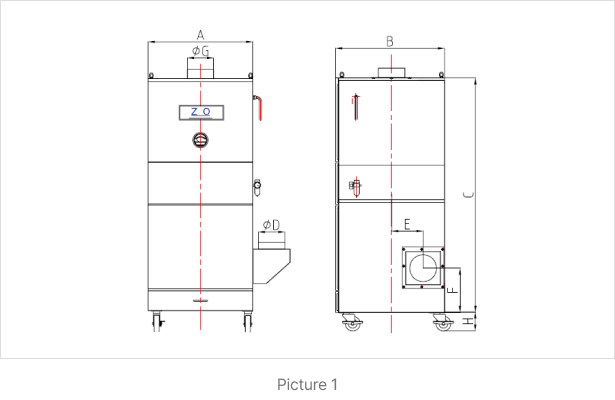

Picture 1

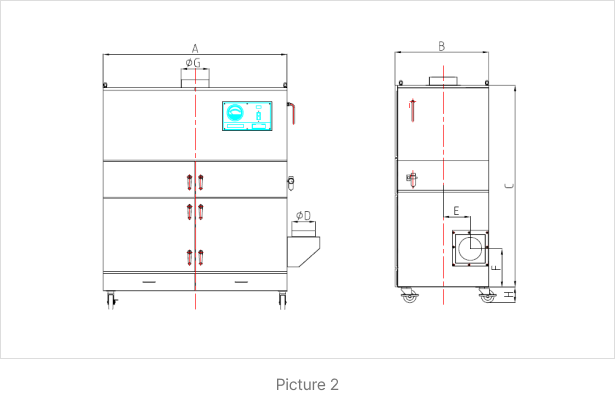

Picture 2
※ Specification are subject to change without notice for improved performance ※ Attaching flexible Arm Hood is an option ※ 5 meter power cable length ※ This product is for indoor

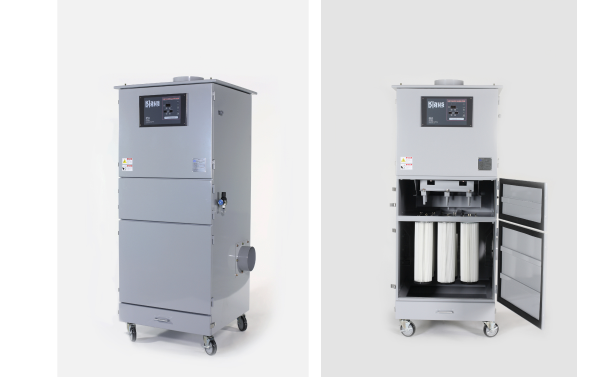

Features
High efficiency filter system
Cartridge-type filter structure increases filter area and maximises fine dust collection efficiency
Different types of filter media can be designed to suit the type, characteristics and particle size of dust generated in different working environments
Turbo fan
Aluminium alloy is used to reduce the idle weight and start a load, thus increasing the absorption force, and electronic balancing with the mould has achieved zero vibration and low noise
Eliminates vibration caused by dirt squeezed between or stuck to the fan blades during use
Filter cleaning method
The dust adhering to the cartridge filter is automatically sprayed into the inside of the cartridge filter by compressed air injection (Air Pulse), which increases the dust collection efficiency
The dust collector automatically removes the dust, enabling 24-hour continuous operation
Pulse digital differential pressure measurement control system
Equipped with a highly functional stabilised digital measurement control system for dust collectors by digitally integrating the solenoid valve timer and the analogue pressure differential gauge
The differential pressure gauges at the front and rear of the filter can be switched to a digital method to more accurately identify the filter change time and display the total operating hours. The valve can be activated manually if required
Option
Bag Filter
Flexible Arm Hood
Air Compressor
Caution
Please note that this dry dust collector must not be exposed to moisture, soft coals, sparks, or any other potential sources of ignition.
For further information on dust that may cause an explosion, please contact us.
