Enclosed-Type Waste Reagent Safety Cabinet

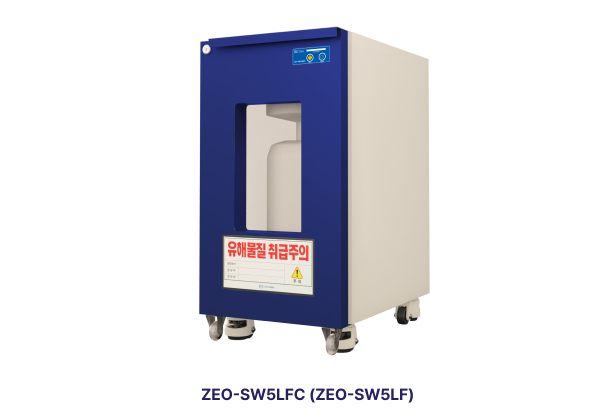

ZEO-SW5LFC(ZEO-SW5LF)
필터형 실험대 수납형(1구)
단문형
Purpose of use
Technical Specifications
좌우 스크롤 >
※ 본 사양은 성능 향상을 위해 예고없이 변경될 수 있습니다.
| Standard / Model | ZEO-SW5LFC | ZEO-SW5LF | |
|---|---|---|---|
| External (규격) | External Size(WxDxH)mm | 400 x 600 x 630 (바퀴 미포함 사이즈) 400 x 600 x 680 (바퀴 포함 사이즈) |
400 x 600 x 630 (바퀴 미포함 사이즈) 400 x 600 x 680 (바퀴 포함 사이즈) |
| Material | CR + 내화학성 분체도색 | CR + 내화학성 분체도색 | |
| Waste Container Capacity | 20 L 화학용기 | 20 L 화학용기 | |
| Funnel Inlet Size | Ø 176 / 대전방지기능 | Ø 176 / 대전방지기능 | |
| Filter 필터 | Circulation Filter | 고성능 케미칼 필터 | 고성능 케미칼 필터 |
| Vent Filter | 안전깔때기 원형필터 | 안전깔때기 원형필터 | |
| Alarm | 수위감지센서 | 수위감지센서 | |
| Lock System | Cam Lock | Cam Lock | |
| Unit Weight | 40 kg | 40 kg | |
| Power | 220 V / 60 Hz | 220 V / 60 Hz | |
| - | - | 조달청 나라장터 등록제품 / 학교장터 등록제품 | |
제품특징 Features

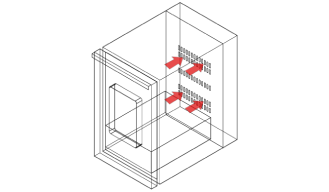

밀폐형
- 폐시약 안전보관함 내부의 공기가 실내로 유출되지 않는 밀폐형 구조
폐액수거 전용 피팅 가능
- 다양한 규격의 폐액 라인과 호환되는 전용 피팅가능(OPTION)

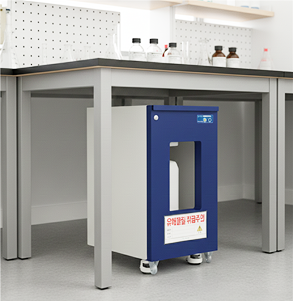

실험대 아래 수납 가능

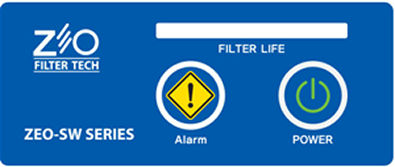

컨트롤러
- 컨트롤러를 통한 정상작동 확인
- 컨트롤러를 통해 폐시약 보관통 안에 내장된 수위 감지센서로 폐시약 보관통 안에 페액이 90 %이상 수거되면 알람
고성능 케미칼 필터
- 폐시약통에서 유출되는 가스를 케미칼 필터를 통해 흡착제거

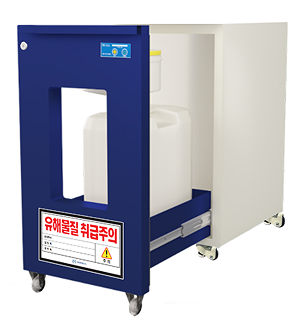

슬라이드 레일
- 슬라이드 레일이 내장되어있어 사용이 편리함

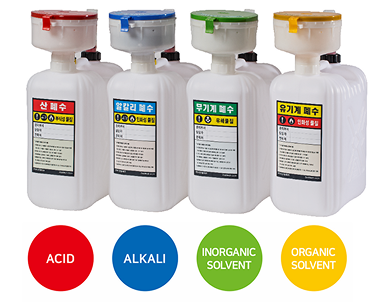

성상에 따른 분리보관
- 폐시약 보관 용기에 보관되는 폐시약의 종류에 따라 폐시약 안전 깔때기 색상을 다르게 하여 폐액 혼합에 의한 폐액의 반응을 방지함
폐액 수위 알림
- 폐시약 보관 용기에 장착된 폐액량 지시계에 의해 폐시약 보관 용기 안의 폐액량 표시 기능
- 폐시약 보관 용기 용량의 70 %부터 수위를 표시하는 빨간색 부표가 올라와 폐액통의 교체시기를 알 수 있음
폭발방지·대전방지·2중구조 깔때기
- 폐시약 보관 용기(20 L) 뚜껑에 폐시약 안전 깔때기 체결하여 사용
- 폐시약 안전 깔때기에 있는 벤트 홀을 통해 페시약 보관 용기 안의 유해가스 정화되어 방출
- 폐시약 안전 깔때기에 있는 벤트 홀에 의해 폐시약 보관 용기가 부풀거나 폭발을 방지함
- 폐시약 안전 깔때기 안에 장착된 VOCs 제거용 원형 필터를 통한 폐액용기 가스 제거
- 폐시약 보관 용기 및 안전 깔때기가 정전기 방지 기능이 있음
- 원형 필터(VOCs 제거용) 교체주기 : 3개월
ZEO-SW7LFC(ZEO-SW7LF)
Enclosed · Self-circulating
1 door
Enclosed · Self-circulating
reagent waste safety cabinet
1 door
Purpose of use
Technical Specifications
scroll left and right >
※ Specification are subject to change without notice for improved performance
| Standard / Model | ZEO-SW7LFC | ZEO-SW7LF | |
|---|---|---|---|
| External | External Size(WxDxH)mm | 400 x 600 x 800 | 400 x 600 x 800 |
| Material | CR + Chemical resistance powder coating | CR + Chemical resistance powder coating | |
| Waste Container Capacity | 20 L container | 20 L container | |
| Funnel Inlet Size | Ø 176 / Anti-static | Ø 176 / Anti-static | |
| Filter | Circulation Filter | Chemical filter | Chemical filter |
| Vent Filter | Circular filter | Circular filter | |
| Alarm | Reagent waste level sensor | Reagent waste level sensor | |
| Lock System | Cam Lock | Cam Lock | |
| Unit Weight | 45 kg | 45 kg | |
| Power | 220 V / 60 Hz | 220 V / 60 Hz | |
| - | - | ||
Features
Enclosed type
- Fully-enclosed structure prevents contaminated air from flowing out the cabinet
Controller
- Check operation through controller
- A reagent level sensor built into the waste reagent cabinet activates an alarm when more than 90 % of the reagent is collected in the container.
Purification system (safety funnel)
- Purifies harmful gas and odor
- Prevent increase in internal pressure of the waste container
Slide rail
- built-in slide rail for users convenience.
Separated storage according to the reagent
- Different colored funnels depending on the reagent waste type (Avoid waste reagent from being mixed)
Waste reagent indicator
- The reagent waste indicator displays volume of reagent waste in the container
- The reagent waste level buoys will be uploaded to show when they need to be replaced from 70% and above
Anti-static funnel and container
- Vent hole allows odor and harmful gas is purified and released
- Vent hole prevent container to explode and expand
- Circular filter is equipped in the safety funnel to purify and removes odor, harmful gas and VOCs
- Replacement interval : Every 3 month
ZEO-SW14LFC(ZEO-SW14LF)
Enclosed · Self-circulating
2 door
Enclosed · Self-circulating
reagent waste safety cabinet
2 door
Purpose of use
Technical Specifications
scroll left and right >
※ Specification are subject to change without notice for improved performance
| Standard / Model | ZEO-SW14LFC | ZEO-SW14LF | |
|---|---|---|---|
| External | External Size(WxDxH)mm | 800 x 600 x 800 | 800 x 600 x 800 |
| Material | CR + Chemical resistance powder coating | CR + Chemical resistance powder coating | |
| Waste Container Capacity | 20 L container X 2 EA | 20 L container X 2 EA | |
| Funnel Inlet Size | Ø 176 / Anti-static | Ø 176 / Anti-static | |
| Filter | Circulation Filter | Chemical filter | Chemical filter |
| Vent Filter | Circular filter | Circular filter | |
| Alarm | Reagent waste level sensor | Reagent waste level sensor | |
| Lock System | Cam Lock | Cam Lock | |
| Unit Weight | 90 kg | 90 kg | |
| Power | 220 V / 60 Hz | 220 V / 60 Hz | |
| - | - | ||
Features
Enclosed type
- Fully-enclosed structure prevents contaminated air from flowing out the cabinet
Controller
- Check operation through controller
- A reagent level sensor built into the waste reagent cabinet activates an alarm when more than 90 % of the reagent is collected in the container.
Purification system (safety funnel)
- Purifies harmful gas and odor
- Prevent increase in internal pressure of the waste container
Slide rail
- built-in slide rail for users convenience.
Separated storage according to the reagent
- Different colored funnels depending on the reagent waste type (Avoid waste reagent from being mixed)
Waste reagent indicator
- The reagent waste indicator displays volume of reagent waste in the container
- The reagent waste level buoys will be uploaded to show when they need to be replaced from 70% and above
Anti-static funnel and container
- Vent hole allows odor and harmful gas is purified and released
- Vent hole prevent container to explode and expand
- Circular filter is equipped in the safety funnel to purify and removes odor, harmful gas and VOCs
- Replacement interval : Every 3 month
ZEO-SW20LC (ZEO-SW20L)
Enclosed · Self-circulating
Enclosed · Self-circulating
reagent waste safety cabinet (trolley-type)
Patent No. 10-0961693(Filter-less fully-enclosed · Self-circulating reagent cabinet)
Purpose of use
Technical Specifications
scroll left and right >
※ Specification are subject to change without notice for improved performance
| Standard / Model | ZEO-SW20LC | ZEO-SW20L | |
|---|---|---|---|
| External | External Size(WxDxH) mm | 700 x 520 x 900 | 700 x 520 x 900 |
| Transport Cart(WxDxH) mm | 280 x 445 x 540 (With wheels 620) x 2 EA |
280 x 445 x 540 (With wheels 620) x 2 EA |
|
| Material | CR + Chemical resistance powder coating | CR + Chemical resistance powder coating | |
| Waste Container Capacity | 20 L container x 2 EA | 20 L container x 2 EA | |
| Funnel Inlet Size | Ø 176 / Anti-static x 2 EA | Ø 176 / Anti-static x 2 EA | |
| Filter | Circulation Filter | KASSIA MODULE + Chemical filter | KASSIA MODULE + Chemical filter |
| Vent Filter | Circular filter | Circular filter | |
| Blower | Sirocco Fan | Sirocco Fan | |
| Lock System | Push turn handle | Push turn handle | |
| Unit Weight | 75 kg | 75 kg | |
| Power | 220 V / 60 Hz | 220 V / 60 Hz | |
| Power Consumption | 60 W | 60 W | |
| - | - | ||
Features
Enclosed, self-circulating type
- Air inside the cabinet is not exposed with enclosed self-circulating structure
Purifiaction system (KASSIA MODULE or Chemical filter + Circular filter)
- A KASSIA module or Chemical filter equipped with semi-permanently removes harmful gases, and a circular filter in the waste reagent safety funnel removes harmful gases from the waste reagent container.
Trolley for reagent waste container
- Dedicated trolley for waste reagent container
- Waste liquid is not leaked, when container is damaged.
ZEO-SW10NUC(SW10NU)
Ion Cluster-Type
Ion Cluster-Type
Waste Reagent Container Storage(4 container)
Patent No. 10-0961693(Filter-less fully-enclosed · Self-circulating reagent cabinet)
Purpose of use
Technical Specifications
scroll left and right >
※ Specification are subject to change without notice for improved performance
| Standard / Model | ZEO-SW10NUC | ZEO-SW10NU | |
|---|---|---|---|
| External | External Size (WxDxH)mm |
800 x 500 x 1,200 | 800 x 500 x 1,200 |
| Material | CR + Chemical resistance | CR + Chemical resistance | |
| Filter | Chemical filter + KASSIA Module | Chemical filter + KASSIA Module | |
| Shelves | 2 Slide unit | 2 Slide unit | |
| Blower | Sirocco Fan | Sirocco Fan | |
| Lock System | Push turn handle | Push turn handle | |
| Unit Weight | 88 kg | 88 kg | |
| Power Consumption | 60 W | 60 W | |
| Power | 220 V / 60 Hz | 220 V / 60 Hz | |
| - | - | ||
Features
Enclosed type
- Fully-enclosed·self-circulating structure prevents contaminated air from flowing out the cabinet
Purifiaction system (KASSIA MODULE or Chemical filter + Circular filter)
- A KASSIA module or Chemical filter equipped with semi-permanently removes harmful gases, and a circular filter in the waste reagent safety funnel removes harmful gases from the waste reagent container.
Slide-out shelf
- Various reagent can be stored with height adjustable shelves
- Convenient reagent storage with sliding shelves
- Shelves are secured by using a latch method to prevent reagent waste container from falling
Auto caster
- Adjuster installed to prevent cabinet from falling
Example of storage
ZEO-SW10NUC(SW10NU)
Ion Cluster-Type
Ion Cluster-Type
Waste Reagent Container Storage(4 container)
Patent No. 10-0961693(Filter-less fully-enclosed · Self-circulating reagent cabinet)
Purpose of use
Technical Specifications
scroll left and right >
※ Specification are subject to change without notice for improved performance
| Standard / Model | ZEO-SW20NUC | ZEO-SW20NU | |
|---|---|---|---|
| External | External Size (WxDxH)mm |
800 x 500 x 1,400 | 800 x 500 x 1,400 |
| Material | CR + Chemical resistance | CR + Chemical resistance | |
| Filter | Chemical filter + KASSIA Module | Chemical filter + KASSIA Module | |
| Shelves | 3 Slide unit | 3 Slide unit | |
| Blower | Sirocco Fan | Sirocco Fan | |
| Lock System | Push turn handle | Push turn handle | |
| Unit Weight | 110 kg | 110 kg | |
| Power Consumption | 60 W | 60 W | |
| Power | 220 V / 60 Hz | 220 V / 60 Hz | |
| - | - | ||
Features
Enclosed type
- Fully-enclosed·self-circulating structure prevents contaminated air from flowing out the cabinet
Purifiaction system (KASSIA MODULE or Chemical filter + Circular filter)
- A KASSIA module or Chemical filter equipped with semi-permanently removes harmful gases, and a circular filter in the waste reagent safety funnel removes harmful gases from the waste reagent container.
Slide-out shelf
- Various reagent can be stored with height adjustable shelves
- Convenient reagent storage with sliding shelves
- Shelves are secured by using a latch method to prevent reagent waste container from falling
Auto caster
- Adjuster installed to prevent cabinet from falling
Example of storage
ZEO-SW40NC(ZEO-SW40N)
Ion Cluster-Type
Ion Cluster-Type
Top-Loading Bottom-Storage Unit(4 container)
Patent No. 10-0961693(Filter-less fully-enclosed · Self-circulating reagent cabinet)
Purpose of use
Technical Specifications
scroll left and right >
※ Specification are subject to change without notice for improved performance
| Standard / Model | ZEO-SW40NC | ZEO-SW40N | |
|---|---|---|---|
| External | External Size (WxDxH)mm |
1,200 x 550 x 1,720 | 1,200 x 550 x 1,720 |
| Material | CR + Chemical resistance powder coating | CR + Chemical resistance powder coating | |
| Waste Container Capacity | 20 L container x 4 EA | 20 L container x 4 EA | |
| Funnel Inlet Size | Ø 176 / Anti-static x 4 EA | Ø 176 / Anti-static x 4 EA | |
| Filter | Circulation filter | Chemical filter + KASSIA MODULE | Chemical filter + KASSIA MODULE |
| Vent filter | Circular filter | Circular filter | |
| Blower | Sirocco Fan | Sirocco Fan | |
| Lock System | Latch | Latch | |
| Unit Weight | 115 kg | 115 kg | |
| Power Consumption | 62 W | 62 W | |
| Power | 220 V / 60 Hz | 220 V / 60 Hz | |
| - | - | ||
Features
Enclosed type
- Fully-enclosed, self-circulating structure prevents contaminated air from flowing out the cabinet
Purification system
- The KASSIA module equipped with semi-permanent ion cluster removes odor and harmful gas.
- circular filter inside the funnel removes odor and harmful gas
Separated storage according to the reagent
- safe and efficient as waste reagent are treated and stored separately
- Different colored funnels depending on the reagent type (Avoid waste reagent from being mixed)
Mini-shelves
- For small waste reagent storage
Slide / Latch method shelves
- Convenient to install or remove waste container with sliding shelves
- The waste reagent container is secured with a latch method
Reagent waste indicator
- The reagent waste indicator displays volume of reagent waste in the container
- The reagent waste level buoys will be uploaded to show when they need to be replaced from 70 % and above
Separated storage according to the reagent
- Different colored funnels depending on the reagent waste type (Avoid waste reagent from being mixed)
Waste reagent indicator
- The reagent waste indicator displays volume of reagent waste in the container
- The reagent waste level buoys will be uploaded to show when they need to be replaced from 70% and above
Anti-static funnel and container
- Vent hole allows odor and harmful gas is purified and released
- Vent hole prevent container to explode and expand
- Circular filter is equipped in the safety funnel to purify and removes odor, harmful gas and VOCs
- Replacement interval : Every 3 month
