PRODUCT

Standing-type

K Series

Hazardous gas removal device (Standing-type)

Catalogue

Patent No. 10-0959634 (Hazardous gas purification and removal devices)

Purpose of use
  • A device that safely collects and removes harmful gases and vapours from hazardous chemicals generated during experiments and chemical processing.
Technical Specifications
Standard / Model ZEO-K20C
External size (WxDxH)mm 575 x 600 x 1,800 mm
Area of use 50 ~ 80 m³
Power consumption 220 V / 60 Hz, 170 W
Weight 90 kg
Display 7-inch LCD
operation method Touch screen
Fan speed (automatic) 1-9 Level operation
concentration display Fine dust / Gas
Air purification Fine dust - HEPA filter
Harmful gas - KASSIA Module(Semi-permanent used)
Harmful gas - Chemical Filter
Anti-microbial pre-filter - Demister

*he Chemical Filter is a dedicated filter that removes organic solvents, alkali acids, ammonia, formaldehyde, etc., and can be used for the desired purpose
Time setting O
Sensor Dust / Gas / Humidity
※ Specification are subject to change without notice for improved performance
Features
  • Low energy consumption depending on the level of gas concentration
  • Removes odor and harmful gas by using KASSIA Module and chemical filter

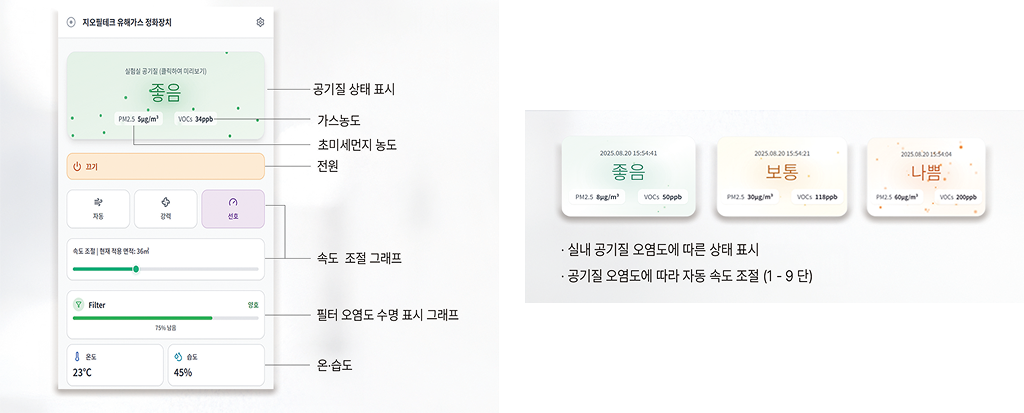

  • Live display of dust and gas concentration
KASSIA Moduel
  • Removes odor and harmful gas
  • No ozone generation
Centrifugal Fan
  • Low energy consumption and high performance
Filter
  • Exclusive filter for odor and VOCs (option)
FAN CONTROL
  • If fan speed is set to automatic, fan speed will be automatically controlled according to the gas concentration (level 1-9)
Laser dust sensor
  • Detect every dust molecules(0.3 um) and indicates concentration live
IAQ gas sensor
  • As a system-on-chip, it includes an embedded microcontroller with an AMS algorithm that detects volatile organic compounds in an indoor environment with low power consumption and converts the detected results into measurements.

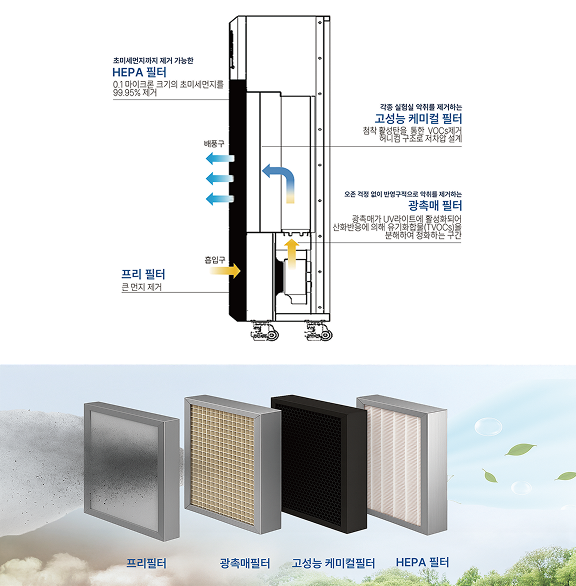

Filter
Demister filter
  • Filter that removes more than 60 % of dust
  • STS 304 material used for semi-permanent use
  • Reusable without filter replacement
Chemical filter
  • High-performance catalysts, adsorbents and chemical filters
  • Optimize of physical adsorption by controlling the size and distribution of micro-pores
  • Maximize chemical adsorption through surface modification and functional group attachment
  • Exclusive filter for various VOCs and odor
KASSIA module
  • Odor and harmful gas removal
  • Semi-permanent use
HEPA filter
  • Depending on the air volume. various filters can be selected (99.9 % Collected at 0.3 μm)
