Removal of water-soluble and water-insoluble oil dust from lathe (automatic lathe), milling, polishing (mold, cylinder, die), tapping machine, food processing, homing machine, press machine, spray painting, lubrication, rust prevention, thinning, coating process, etc.
Technical Specifications
scroll left and right >
Standard / Model
ZEO-KM200
ZEO-KM300
ZEO-KM500
ZEO-KM700
ZEO-KM1000
Blower
Power
220 V / 380 V, 3 / 60 Hz, 440 V (option), 50 Hz (option)
Motor(kM)
1.5
2.2
3.7
5.5
7.5
Air Flow (m3/min)
25
40
60
80
100
Pressure (mmAq)
200
Filter
Demister filter
610 x 610 x 25
610 x 610 x 50
610 x 610 x 100
610 x 610 x 50 (2 EA)
610 x 610 x 100 (2 EA)
Dry-pack filter
610 x 610 x 500 8 Pocket
610 x 610 x 500 8 Pocket
610 x 610 x 500 8 Pocket
610 x 610 x 500 8 Pocket (2 EA)
610 x 610 x 762 8 Pocket (2 EA)
Activated carbon filter
Option
Option
Option
Option
Option
HEPA filter
610 x 610 x 100
610 x 610 x 150
610 x 610 x 150
610 x 760 x 150 (2 EA)
610 x 760 x 150 (2 EA)
Dimensions (mm)
A (Front)
670
770
770
1,350
1,350
B (Sied)
670
770
770
800
800
C (Height)
1,580
1,710
1,860
1,980
1,980
D (Inlet)
150
200
250
300
350
E (Inlet diameter)
135
150
175
200
225
F (Inlet height)
150
150
175
200
225
G (Outlet)
200
250
300
350
400
H (wheel)
130
130
130
130
130
Unit Weight(kg)
150
180
230
340
450

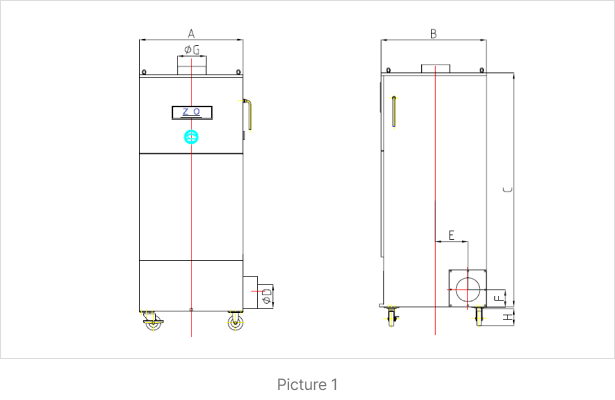

Picture 1

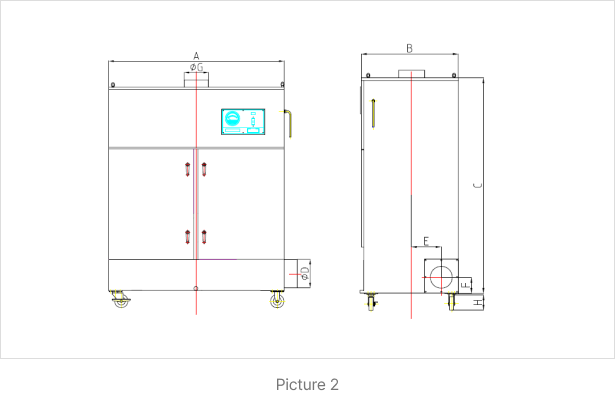

Picture 2
※ Specification are subject to change without notice for improved performance ※ Attaching flexible Arm Hood is an option ※ 5 meter power cable length ※ This product is for indoor
Features
Hydrodynamic design for optimum collection efficiencyCreation of Ideal Filter Efficiency Via Hydro-Dynamical Design
A hydrodynamic design maximises product safety and efficiency in removing oil dust and vapours.
An aluminium-alloy die-cast turbofan is used to reduce the idle weight and start-up load, thereby increasing the suction efficiency and significantly reducing the frictional resistance noise generated at the discharge port.
it can be installed in tight spaces, and the flexible arm that moves freely can be placed near the source of oil dust and fumes to eliminate the oil dust and fumes, thus improving the health and work efficiency of workers.
High efficiency filter system
Three-piece filter structure seamlessly removes fumes and dust.
Sliding structure makes filter replacement easy.
The collection efficiency has been maximised by placing it close to the source of oil generation and collecting the oil locally.
An impregnated activated carbon filter is fitted to provide additional odor removal.
Demister filter : Captures coarse particles larger than 5μm.
Dry Pack Filter : As an expanded surface filter based on the principle of maximising the coverage area, it collects large quantities of oily dust thanks to its low pressure drop, which allows a uniform and precise airflow.
HEPA filter [option] : Equipped with a HEPA filter capable of removing up to 99.97% of fine dust with a particle size of 0.3 μm, it can purify the air in the workplace.
Digital differential pressure measurement control system
Equipped with a highly functional, stabilised digital instrumentation control system, which digitally integrates the solenoid valve timer and analogue pressure gauge, a pressure differential indicator
By Digitally changing the pressure differential display at the front and rear of the filter, the key for filter replacement can be more clearly determined, the total operating hours can be displayed, and the valve can be manually operated if necessary
Option
Dry Pack Filter
Flexible Arm Hood 160 2 m, 3 m, 4 m, 5 m / Flexible Arm Hood 160, 200, 2 m, 3 m
Caution
Periodic filter replacements are required if the workload is large or the working time is long.
