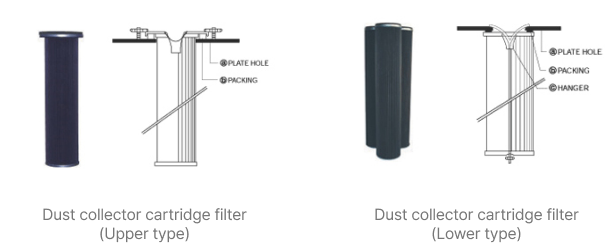

Cartridge filter

Cartridge filter

Purpose of use
  • Collect stone processing dust, pharmaceutical dust, chemical dust, metal dust, wood dust, abrasive dust, mixed raw material recovery dust, powder coating dust, and other industrial dust.
Technical Specifications
scroll left and right >
Size(mm) Filtration area(m²) Air permeability(cc/cm²/sec) Temperature(°C) Temperature(°C)
Ø 145(Ø 77) x 500 1.9 15±1 Under 120 P・E
(Polyester)
Ø 145(Ø 77) x 800 3.0
Ø 145(Ø 77) x 1000 4.0
Ø 200(Ø 77) x 500 2.25
Ø 200(Ø 77) x 1000 4.5
Ø 200(Ø 77) x 1500 6.75
Features
  • Achieved by a wide filtration area and maximum dust collection efficiency
  • Low pressure - the compressed air pressure is only about 4.0 kg/cm2 (when the filtration rate is kept below 1/min)
  • Easy to maintain and replace filters
