Dust collector for harmful gas removal

Klaus Harmful & Toxic Pollutant Filtering System
dchgr Series [ZEO-KF SERIES]

Dust collector for harmful gas removal

Purpose of use
  • Precious metal manufacturing, polishing, heat treatment, painting, processing using organic solvents, removal of odors and harmful gases from laboratory equipment, various animal laboratories, hospitals, and small-scale livestock houses
Technical Specifications
scroll left and right >
Standard / Model ZEO-dchgr100 ZEO-KH200 ZEO-KH300 ZEO-KH500 ZEO-KH700 ZEO-KH1000
Blower Power 220 V / 380 V, 3 / 60 Hz, 440 V (option), 50 Hz (option)
Motor(kM) 0.75 1.5 2.2 3.7 5.5 7.5
Air Flow (m3/min) 12 25 40 60 80 100
Pressure (mmAq) 230
Filter Pre-filter 610 x 610 x 25 610 x 610 x 25 610 x 610 x 25 610 x 610 x 25 610 x 610 x 25(2 EA) 610 x 610 x 25(2 EA)
Active carbon filter 610 x 610 x 50 610 x 610 x 50 610 x 610 x 100 610 x 610 x 150 610 x 610 x 100 (2 EA) 610 x 610 x 150 (2 EA)
ZEO Filter 610 x 610 x 50 610 x 610 x 50 610 x 610 x 100 610 x 610 x 150 610 x 610 x 100 (2 EA) 610 x 610 x 150 (2 EA)

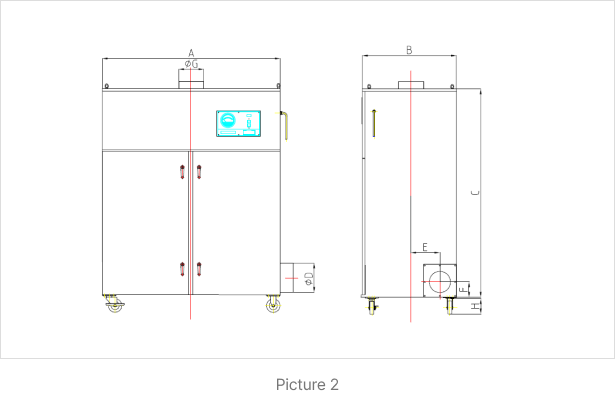

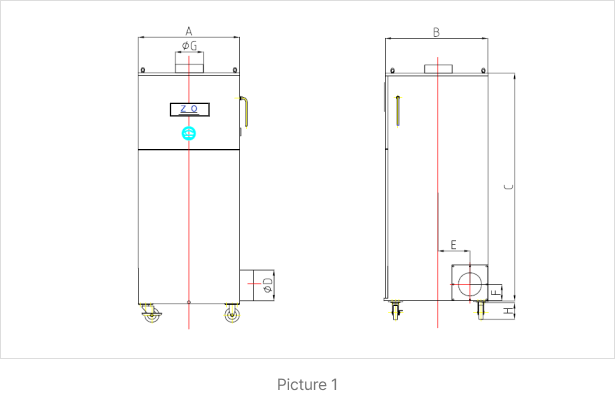

Dimensions (mm) A (Front) 670 670 770 770 1,400 1,400
B (Sied) 670 670 770 770 800 800
C (Height) 1,220 1,000 1,300 1,520 1,550 1,650
D (Inlet) 100 150 200 250 300 350
E (Inlet diameter) 330 135 150 175 200 225
F (Inlet height) 330 150 150 175 200 225
G (Outlet) 150 200 250 300 350 400
H (Outlet) 140 130 130 130 130 130
Unit Weight(kg) 120 140 180 230 320 400
Picture Picture 1 Picture 2
※ Specification are subject to change without notice for improved performance
※ Attaching flexible Arm Hood is an option
※ 5 meter power cable length
※ This product is for indoor
Features
Fluid-dynamic design for optimum collection efficiency Creation of Ideal Filter Efficiency Via Hydro-Dynamical Design
  • Fluid-dynamic design maximises product safety and efficiency in removing harmful gases and odours
  • The aluminium alloy turbo fan is used to reduce the idle weight and start-up load, thereby increasing the suction efficiency and significantly reducing the frictional resistance noise generated at the discharge port
  • The sliding method, which makes filter replacement convenient, is used to enable installation in tight spaces
High efficiency filter system
  • Its three-piece filter structure seamlessly collects smoke and dust.
  • Pre-filter / Primary filter : Removes relatively large particles of fume or dust (3 µm - 30 µm) with a pre-filter suitable for the working environment.
  • Impregnated Activated Carbon Filter / Secondary Filter : Removes harmful gases such as odours and VOCs.
  • ZEO Filter / Tertiary Filter : Maximises the physicochemical adsorption of harmful and odor gases by surface modification and the addition of of functional groups, Adjusts micropore size and distribution in the filter for optimum physical adsorption properties, Possible to create an exclusive filter for different VOCs and odors (option).
Turbo fan
  • Aluminium alloy is used to reduce the idle weight and start up load, thus increasing the absorbing force, and electronic balancing with the mould has achieved zero vibration and low noise.
  • Eliminates vibration caused by dirt squeezed between or stuck to the fan blades during use.
Coating
  • Maximised durability and luxury with a high quality coating
  • Coated with chemical resistant material
Digital differential pressure measurement control system
  • Equipped with the first dust collector controller in Korea that has the function of flexibly adjusting and controlling the ON/OFF of the fan motor depending on the condition of the filter.
  • The differential pressure gauges on the front and back of the filter can be switched to a digital method to more accurately identify the timing of filter replacement, resulting in less wear and tear on the unit.
Option

ZEO Filter

Flexible Arm Hood(Nerderman Ø 160, Ø 200, 2 m, 3 m)

Caution
  • Avoid inhaling volatile or low-grade substances.
  • For high temperatures and specific concerns, please contact us.
