Fully-enclosed·self-circulating separated reagent cabinet

SNS Series

Fully-enclosed·self-circulating
separated reagent cabinet

2 Door / 4 Doors
Catalogue

Patent No. 10-0961693(Filter-less fully-enclosed · Self-circulating reagent cabinet)

CE certified product

Purpose of use
  • The KASSIA module equipped with semi-permanent ion cluster removes odor and harmful gas.
  • 7 inch color touch display (Temperature, humidity, VOCs concentration display)
  • separate storage by different reagent
  • Available to install filter between separate reagent cabinet
Technical Specifications
scroll left and right >
Standard / Model ZEO-SN142S ZEO-SN143S ZEO-SNS100 ZEO-SNS200
External Size(WxDxH)mm 970 x 550 x 1,800 1,665 x 550 x 1,800 970 x 550 x 1,800 1,665 x 550 x 1,800
Interior Size(WxDxH)mm (600 x 450 x 730) 2 EA
/ 197 L x 2 EA		 (600 x 450 x 730) 4 EA
/ 197 L x 4 EA		 (600 x 450 x 730) 2 EA
/ 197 L x 2 EA		 (600 x 450 x 730) 4 EA
/ 197 L x 4 EA
Max, load per shelf 30 Kg 30 Kg 30 Kg 30 Kg
Noise Level Below 55 dB Below 55 dB Below 55 dB Below 55 dB
Shelves 4 Slide unit 8 Slide unit 4 Slide unit 8 Slide unit
Shelves(Materials) P/P P/P Steel + Powder coating Steel + Powder coating
Unit Weight 230 kg 370 kg 230 kg 370 kg
Power Consumption 45 W 75 W 45 W 75 W
Lock System Electronic Lock Electronic Lock Electronic Lock Electronic Lock
Power 220 V / 60 Hz 220 V / 60 Hz 220 V / 60 Hz 220 V / 60 Hz
Option IOT features / Filter IOT features / Filter
※ Specification are subject to change without notice for improved performance
Features
  • A contaminated air flowing into the reagent cabinet, over-saturate the filter and reduce filter life.
  • A contaminated filters can be a source of pollution, emitting odor and harmful gas.
  • A self-circulation avoid loss of cooling and heating energy

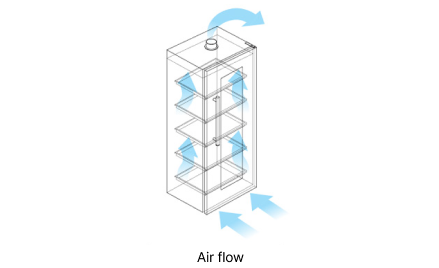

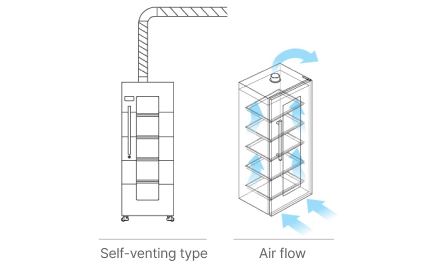

Fluid dynamics design Creation of ideal filter efficiency via pressure diffrential pressure
  • The reagent cabinet is designed ti have negatice pressure of-0.3 hpa by differential pressure

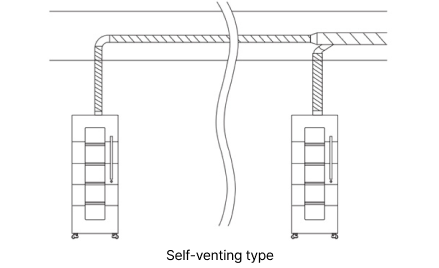

  • The air inside the cabinet is not vented to the outside
  • The flow of velocity at the bottom of cabinet is designed to be 0.5 m/s to prevent the back-flow of odor and harmful gas molecule
KASSIA module (Ion-cluster)

Removes odor and harmful gas with ion cluster Ion cluster is a group of 10~60 oxygen molecules that directly oxidize various radicals including oxygen anions, cations and OH and odor substance eliminate pollutants.

  • The KASSIA module equipped with semi-permanent ion cluster removes odor and harmful gas.
  • Removes over 95 % of odor and harmful gas.
CxHy + (x+y/4)O2
xCO2 + (y/2)H2O
scroll left and right >
NAME Chemical formula Elimination reaction
Toluene C₇H₈
C₇H₈ + 9O₂ CO₂ + H₂O
Benzene C₆H₆
2C₆H₆ + 15O₂ 12CO₂ + 6H₂O
Methane CH₄
CH₄ + 2O₂ CO₂ + 4H₂O
Ammonia NH₃
4NH₃ + 3O₂ 2N₂ + 6H₂O
Acetaldehyde C₂H₄O
2C₂H₄O + 5O₂ 4CO₂ + 4H₂O
Formaldehyde CH₂O
CH₂ + O₂ CO₂ + H₂O
Ethylene C₂H₄
C₂H₄ + 3O₂ 2CO₂ + 2H₂O
High performance chemical filter
  • Optimizes physical adsorption by controlling the size and distribution of micro-pore
  • Maximizes chemical adsorption by surface modification and adhesion functional groups
  • Exclusive filter for various VOCs and Odors
MODEL Removal subject Feature
ZSA-4000 VOCs Odor and VOCs removal
ZSA-0510 Acid Acid gas removal
7-inch color touch display (Premium)
  • Temperature, humidity, VOCs concentration display
  • gas concentration and humidity live graph display

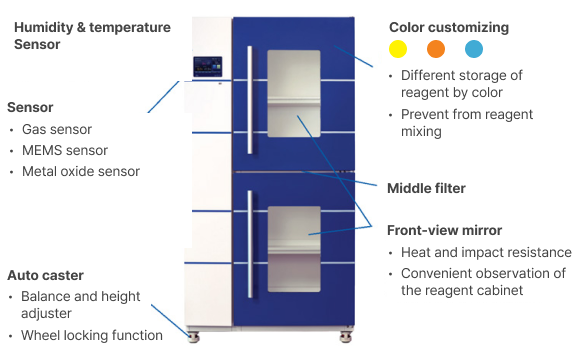

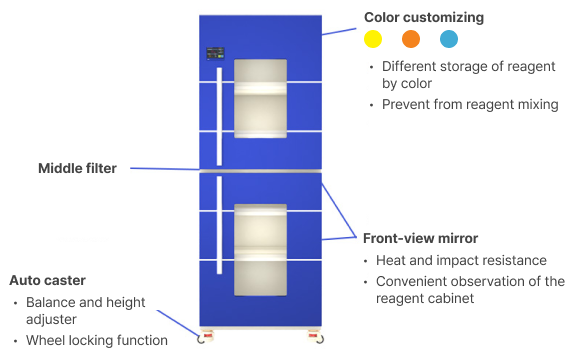

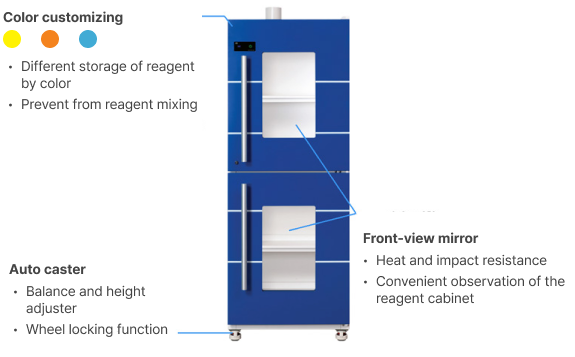

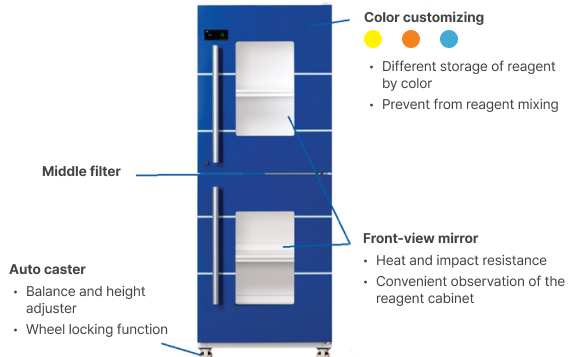

Materials
  • 1.2 mm cold rolled steel plate + powder coating (Polypropylene)
Slide-out shelves
  • Various reagent can be stored with height adjustable shelves
  • Convenient reagent storage with sliding shelves
  • Shelves are secured by using a latch method to prevent reagent waste container from falling
  • The waste reagent container is secured with a latch method
  • 1.2 mm cold rolled steel plate + powder coating (Polypropylene)
Magnetic lock
  • Electronic locking system managed from touch display
  • Adhesive strength : 270 kgs
Turbo fan
  • Built-in fan overheat protection system
  • Built-in motorized turbo fan
